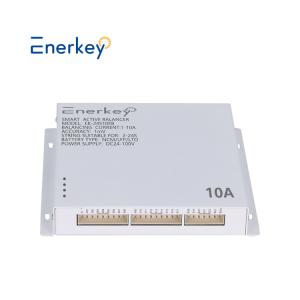

This is an active equalizer module for lithium batteries and is compatible with all other brands of BMS. Please note that this balancer cannot be used for multiple strings of batteries: the 2-24S Active Balancer can only be used for 2-24 cells connected in series.
It has powerful communication functions, support CAN / Bluetooth connection , can set and view battery balancing parameters through mobile phone APP or PC.
Equalized energy dissipation without internal resistance and low heat generation for long time connection to the battery pack.
It can be used in the field of power batteries (electric vehicles, forklifts, AGVs, cleaning vehicles, etc.), and can also be used in the field of energy storage (outdoor power supply, RV, home energy storage, base station, photovoltaic, etc.)
We provide 1 year product warranty and 24/7 online service for your inquiry, please feel free to contact us.
Technical Parameters
| Product model | 10A Smart Active Balancer for 2-24s (EK-24S10EB) |
| Supported battery type | NCM / LFP/ LTO(Li-ion/Lifepo4/Lto) |
| Single cell voltage collection range | |
| Undervoltage protects sleep voltage | APP can be customized Settings :1.5-4.2V |
| Equilibrium method | Time-sharing single channel transfer, point-to-point energy transfer |
| Reverse protection | Support disorderly power on detection/protection |
| Equilibrium current | APP can be customized Settings: 1A~10A |
| Whether an external power supply is required | External power supply 24V-100V(accuracy ±1mV) Battery powered (accuracy ±3mV) |
| Voltage equalization accuracy | APP can be customized Settings :1mV(TYP) |
| Wire cascading | |
| Power failure detection function | |
| Wrong wire protection function | |
| Fault alarm function | |
| Buzzer | APP can be customized Settings |
| Power dissipation | At equilibrium≈1W,Stop equilibrium≈0.5W |
| Operating temperature | |
| Application | Electric toys, electric balance car/bicycle |
Packing List
Use Manual
Wiring Diagram
The use of battery power or DC adapter power supply, its wiring method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy ±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing accuracy ±1mV. The following figure shows how to install and connect the 24S battery pack:
EK-24S10EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange". The following uses the 36S as an example to describe how to install and connect cables:
Notice:
1.When used in cascade, there is at least one "energy exchange commonend" between every two equalizers. When welding, please note whetherthe connection here is correct.
2.During cascading use, please check whether the wiring is wrongrepeatedly.lf it cannot be used after connection, please contactafter-sales personnel to consult the corresponding cascade diagram.
